KLD-S Series
Intelligent Capacitor
Intelligent capacitor is an integrated intelligent compensation equipment of reactive power compensation circuits, and its integrated design is more friendly to the installation space.
PRODUCT OVERVIEW
KLD-S series intelligent capacitor is a new generation of reactive power compensation equipment for low-voltage distribution network to improve efficiency and save energy, reduce line loss, improve power factor and power quality. It integrates power electronic technology, measurement and control sensing technology, network communication technology, electrical manufacturing and other advanced technologies, making the traditional reactive power compensation products more integrated, networked and intelligent. It is characterized by simple structure, easy maintenance and high reliability.
Modular structure combines related components into a whole, featuring small volume, simple on-site wiring, and convenient maintenance. When the capacity of reactive power compensation is insufficient, it is convenient to add more intelligent capacitor module for capacity expansion to meet the reactive power demand. Intelligent capacitor has the functions of short-circuit protection, phase loss protection, overcurrent protection and over temperature protection, etc., which can effectively ensure the safety of use and prolong the service life.

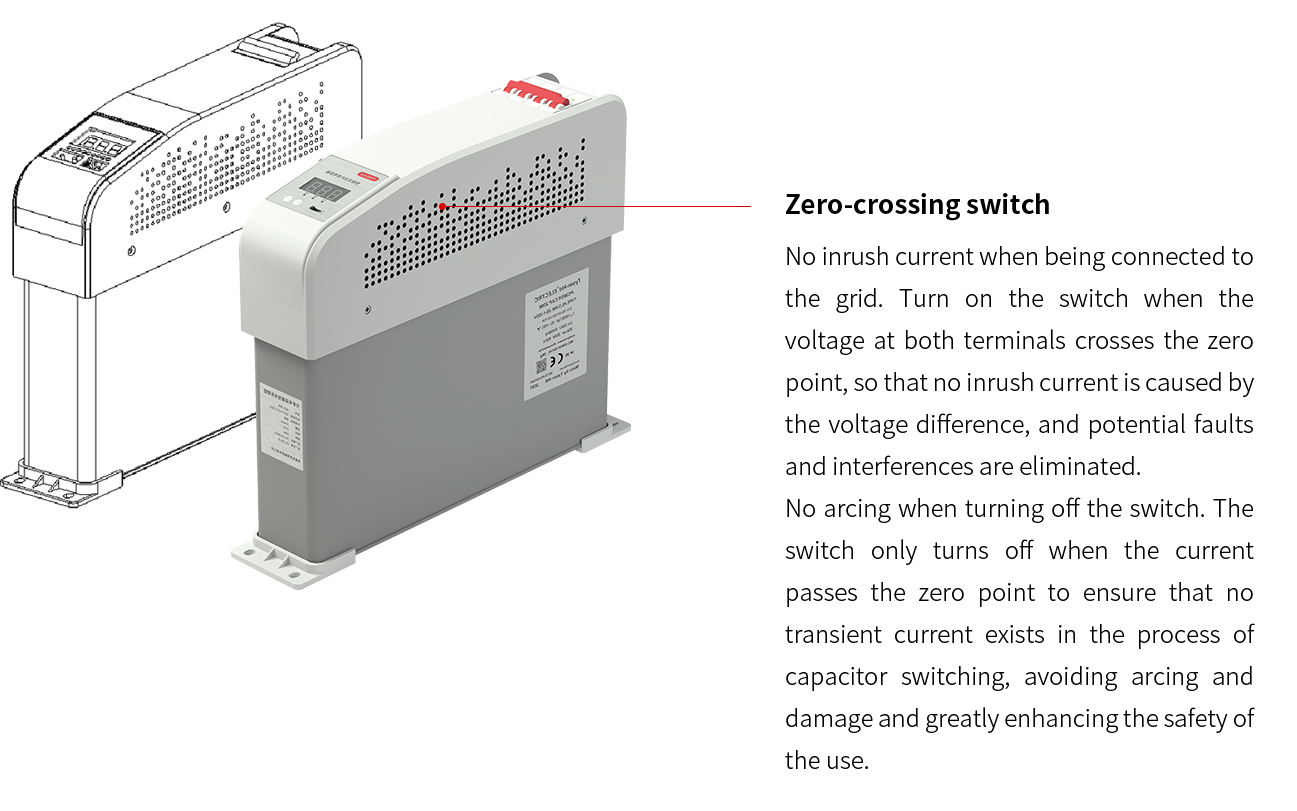

ZERO-CROSSING SWITCHING TECHNOLOGY
Integrated structure makes the installation more convenient and over-temperature protection makes the use more safe.
ANTI-HARMONIC FUNCTION

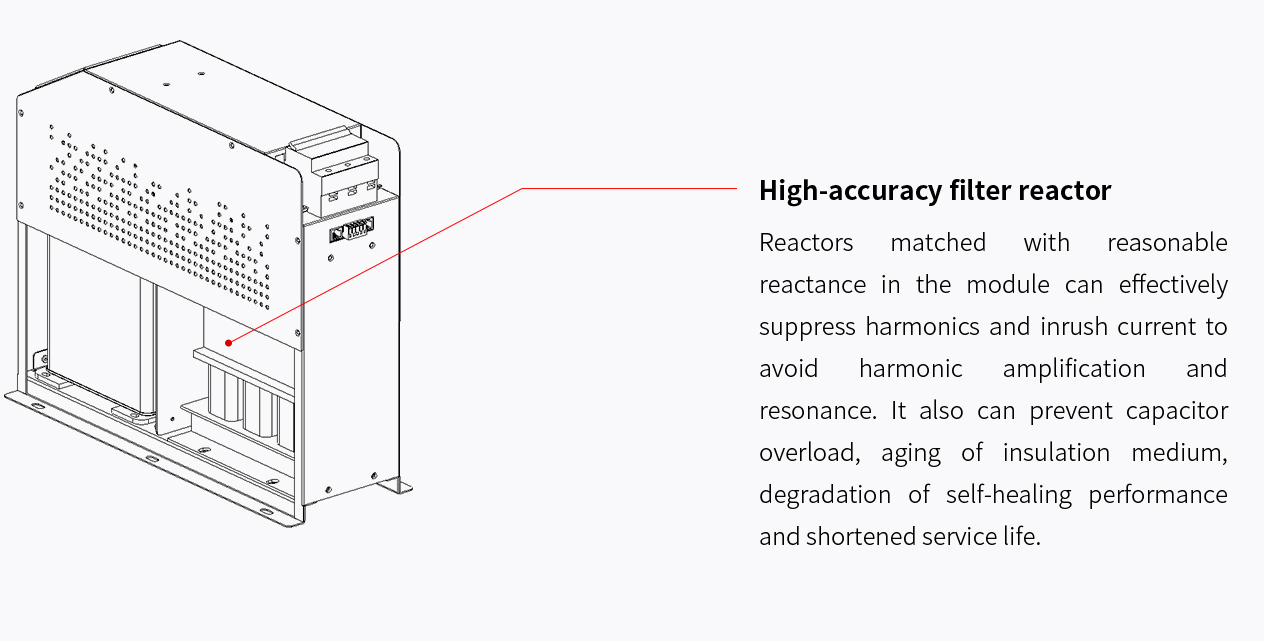

KLD-SBKS series filter intelligent capacitor can suppress the harm of harmonics on capacitors to ensure safe operation.
LAYERED MODULAR STRUCTURE DESIGN
Flexible application, easy maintenance and appealing appearance, which is more suitable for modern power distribution rooms.

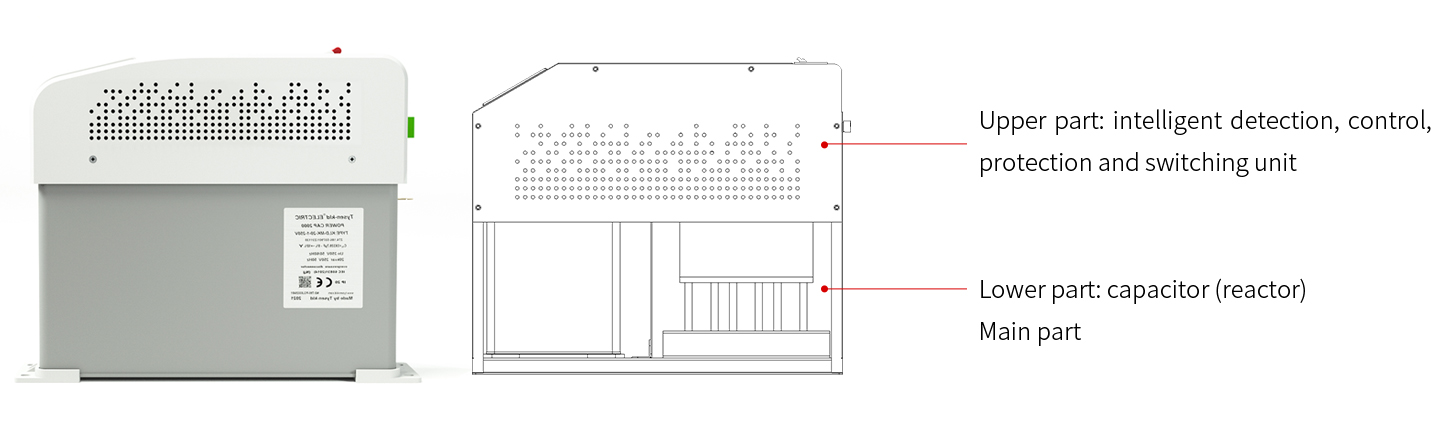

Intelligent capacitor adopts upper and lower separated structure, and the main circuit components and control circuit are completely isolated from each other. The layered design effectively improves the efficiency of heat dissipation, and realizes the quick assembly, disassembly, maintenance and repair of the product, which transforms the traditional bulky and heavy structure of reactive power compensation equippment.
Technical Parameters
| Power Environment | |
| Rated voltage | AC220V/380V |
| Operating voltage | Rated voltage±20% |
| Voltage waveform | Sinusoidal waveform, total distortion rate not more than 5% |
| Power frequency | 50Hz |
| Measurement accuracy index | |
| Voltage | ≤0.5% |
| Current | ≤0.5% |
| PowerLoss | ≤1% |
| Power factor | ±0.01 |
| Intelligent switching index | |
| Zero-crossing switching offset | ≤2.5° |
| Zero-crossing switching inrush current | ≤3 times rated current |
| Impulse withstand voltage | ≥AC3500V(DC5000V) |
| Reactive power control parameters | |
| Reactive power control tolerance | ≤75% of the minimum capacitor capacity |
| Reactive power capacity | Single pc≤40kvar(three phase), ≤30kvr (single phase) |
| Reliability parameters | |
| Control accuracy | 100% |
| Attenuation rate of capacity operation time | ≤1% / five years |
| Switching attenuation rate of capacitor capacity switching | ≤0.1%/10 thousand times |
| Annual fault rate | ≤0.01% |
| Capacitance tolerance | 0%~+3% |
| Average service life | 200,000h |
Selection table
KLD-SMK Series Intelligent Capacitor
| Model | Capacity（kvar） | Combination mode | System voltage（V） |
| Single-phase | |||
| KLD-SMK-20-1-250V-R | 20 | 10kvar+10kvar | 400 |
| KLD-SMK-15-1-250V-R | 15 | 10kvar+5kvar | 400 |
| KLD-SMK-10-1-250V-R | 10 | 10kvar | 400 |
| KLD-SMK-5-1-250V-R | 5 | 5kvar | 400 |
| Three-phase | |||
| KLD-SMK-40-450V-R | 40 | 20kvar+20kvar | 400 |
| KLD-SMK-30-450V-R | 30 | 20kvar+10kvar | 400 |
| KLD-SMK-20-450V-R | 20 | 10kvar+10kvar | 400 |
| KLD-SMK-15-450V-R | 15 | 10kvar+5kvar | 400 |
| KLD-SMK-10-450V-R | 10 | 5kvar+5kvar | 400 |
KLD-SBKS Series Intelligent Capacitor
| Model | Capacity（kvar） | Reactance rate | System voltage（V） |
| Single-phase | |||
| KLD-SBKS7-30-1-280V-R | 30 | 7% | 400 |
| KLD-SBKS7-20-1-280V-R | 20 | 7% | 400 |
| KLD-SBKS7-15-1-280V-R | 15 | 7% | 400 |
| KLD-SBKS7-10-1-280V-R | 10 | 7% | 400 |
| KLD-SBKS7-5-1-280V-R | 5 | 7% | 400 |
| Three-phase | |||
| KLD-SBKS7-40-480V-R | 40 | 7% | 400 |
| KLD-SBKS7-30-480V-R | 30 | 7% | 400 |
| KLD-SBKS7-20-480V-R | 20 | 7% | 400 |
| KLD-SBKS7-15-480V-R | 15 | 7% | 400 |
| KLD-SBKS7-10-480V-R | 10 | 7% | 400 |
Technical Parameters
-
Rated voltage：AC220V/380V
Operating voltage：Rated voltage±20%
Voltage waveform：Sinusoidal waveform, total distortion rate not more than 5%
Power frequency：50Hz
-
Voltage：≤0.5%
Current：≤0.5%
PowerLoss：≤1%
Power factor：±0.01
-
Zero-crossing switching offset：≤2.5°
Zero-crossing switching inrush current：≤3 times rated current
Impulse withstand voltage：≥AC3500V(DC5000V)
-
Reactive power control tolerance：≤75% of the minimum capacitor capacity
Reactive power capacity：Single pc≤40kvar(three phase), ≤30kvr (single phase)
-
Control accuracy：100%
Attenuation rate of capacity operation time：≤1% / five years
Switching attenuation rate of capacitor capacity switching：≤0.1%/万次
Annual fault rate：≤0.01%
Capacitance tolerance：0%~+3%
Average service life：200,000h
Selection table
KLD-SMK Series Intelligent Capacitor
Single-phase
-
Capacity（kvar）：20
Combination mode：10kvar+10kvar
System voltage（V）：400
-
Capacity（kvar）：15
Combination mode：10kvar+5kvar
System voltage（V）：400
-
Capacity（kvar）：10
Combination mode：10kvar
System voltage（V）：400
-
Capacity（kvar）：5
Combination mode：5kvar
System voltage（V）：400
Three-phase
-
Capacity（kvar）：40
Combination mode：20kvar+20kvar
System voltage（V）：400
-
Capacity（kvar）：30
Combination mode：20kvar+10kvar
System voltage（V）：400
-
Capacity（kvar）：20
Combination mode：10kvar+10kvar
System voltage（V）：400
-
Capacity（kvar）：15
Combination mode：10kvar+5kvar
System voltage（V）：400
-
Capacity（kvar）：10
Combination mode：5kvar+5kvar
System voltage（V）：400
KLD-SBKS Series Intelligent Capacitor
Single-phase
-
Capacity（kvar）：30
Reactance rate：7%
System voltage（V）：400
-
Capacity（kvar）：20
Reactance rate：7%
System voltage（V）：400
-
Capacity（kvar）：15
Reactance rate：7%
System voltage（V）：400
-
Capacity（kvar）：10
Reactance rate：7%
System voltage（V）：400
-
Capacity（kvar）：10
Reactance rate：7%
System voltage（V）：400
-
Capacity（kvar）：5
Reactance rate：7%
System voltage（V）：400
Three-phase
-
Capacity（kvar）：40
Reactance rate：7%
System voltage（V）：400
-
Capacity（kvar）：30
Reactance rate：7%
System voltage（V）：400
-
Capacity（kvar）：20
Reactance rate：7%
System voltage（V）：400
-
Capacity（kvar）：15
Reactance rate：7%
System voltage（V）：400
-
Capacity（kvar）：10
Reactance rate：7%
System voltage（V）：400
