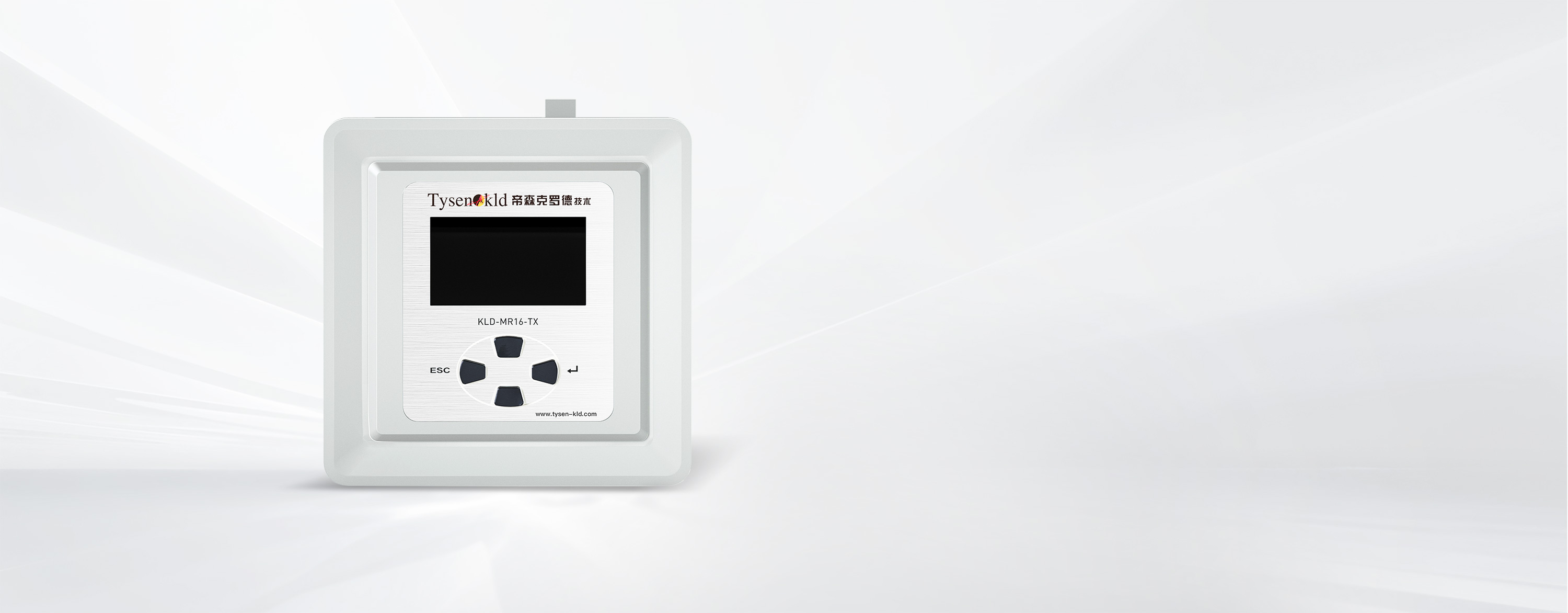

KLD-MR Series

Power Factor Controller

Power factor controllers provide effective reactive power compensation, measurement and monitoring of the power grid, which can be applied to the automatic control of low-voltage reactive power compensation systems.

PRODUCT OVERVIEW

Power factor is an important criterion for the assessment of electricity efficiency. Power factor correction can improve power quality, and its function, control and safety features are highly valued by many users.

KLD-MR series power factor controller calculates the corresponding active and reactive power according to the current and voltage collected in the power distribution system, and ensures that the power factor can be adjusted in a short period of time with a minimum number of switching cycles; the control parameters can be adjusted individually at any time even during the operation.

The power factor controller quickly identifies the system demand for reactive power. If the reactive power demand coefficient exceeds the threshold, the appropriate combination of compensation circuits will be used according to the configuration requirements of the system and the power factor controller. Intelligent power factor controllers are able to monitor the data related to the power of the equipment and distribution system, take protective measures accordingly in the case of abnormal power parameters, and shut down the operation of the equipment or compensation circuits temporarily or permanently as required.

CONVENIENT DISASSEMBLY AND ASSEMELY

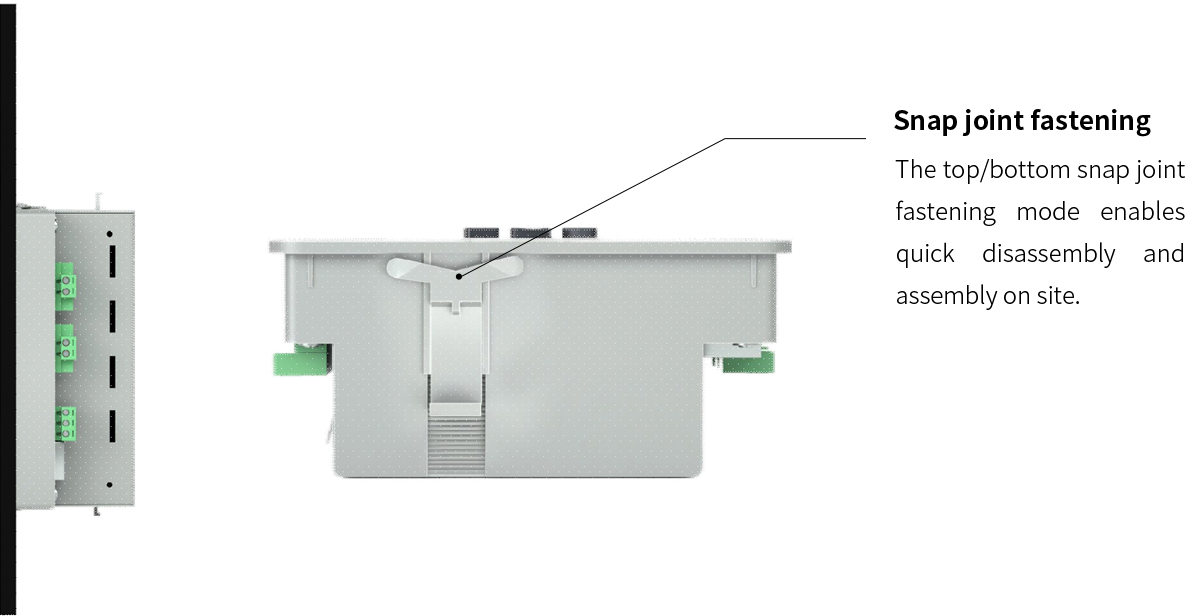

We have designed extremely convenient snap joints on the top and bottom of the controller for convenience.

COMPREHENSIVE PROTECTION
AND ALARM FUNCTIONS

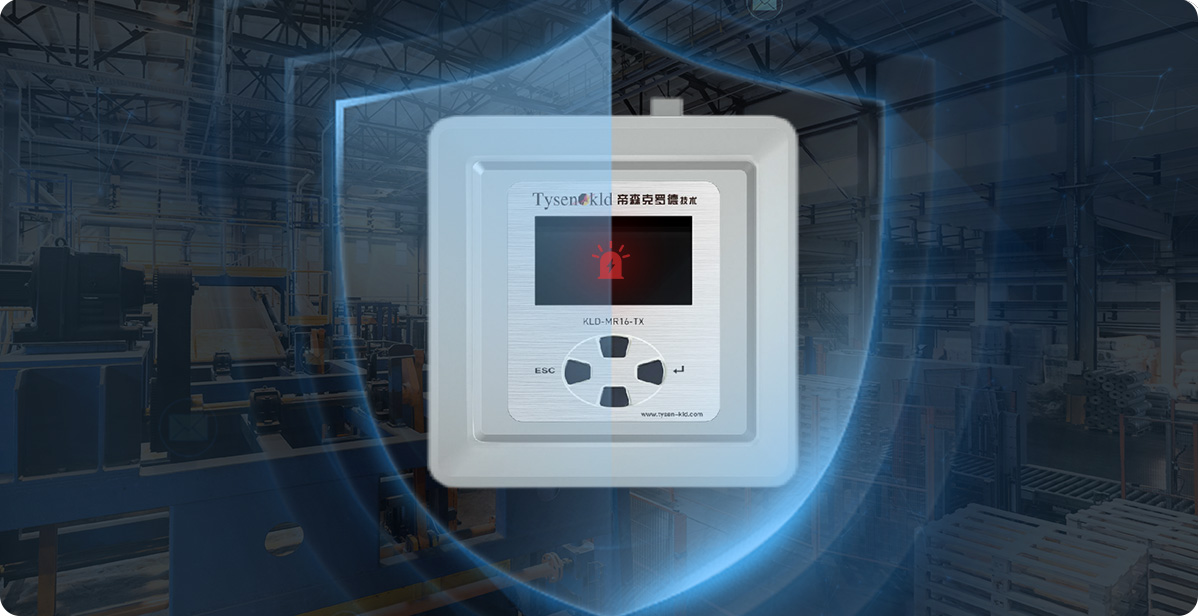

The power factor controller has built-in over-voltage, under-voltage, THDi, THDu, over-temperature and other protection limits to ensure the safety of operation

When a parameter exceeds the limit, the controller will gradually switch off, and the alarm information can be checked in the "Fault Alarm" interface; the user only needs to check the relevant parameters and adjusts the reasonable limit, and the loop will be put into operation after the power parameters of distribution system return to normal.

REALIZE THE FUNCTION OF
MULTI-LOOP EXPANSION

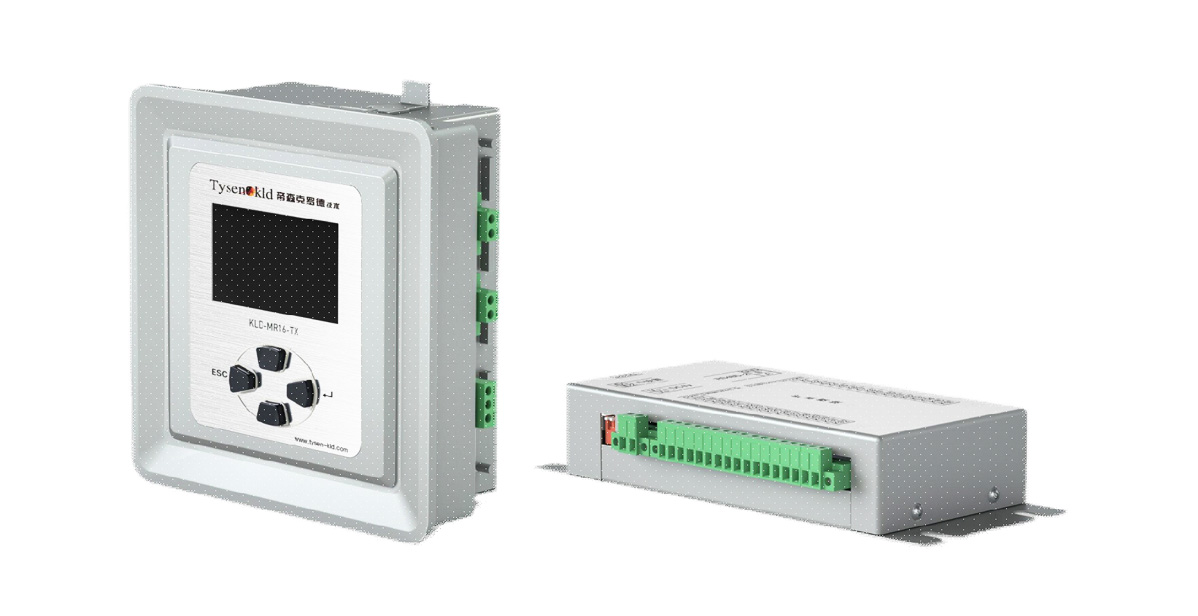

32-channel expansion module can help customers to increase the number of circuits in multi-loop scenarios.

When there are a large number of loops in the compensation controller, it can be matched with MR(T) 32-channel controller expansion module to expand the control terminals of the controller through communication.

Technical Parameters

Operation voltage AC220V/380V,45-65Hz
Display Current I, Voltage U, Power factor cosφ, Active power P, Reactive power Q, Harmonic THD, etc.
Number of output channels 16 channels
Interface RS485, RJ45, Modbus Communication protocol
Connection Pluggable terminal
Housing Front: resin structure Rear: metal structure
Operating temperature -25℃~+70℃
Storage temperature -40℃~+85℃
Ambient humidity 0%~95%, no humidity and condensing
Protection degree IP40 for front panel, changed protection degree can be customized
Case size 144mm(L) x144mm(W)x65mm(D)
Execution standard EN61010-1/IEC 61610-1,EN 61326/IEC 61326
Selection table

Model Application Number of controller paths AC voltage(V) Over-temperature protection Hole size(mm)
KLD-MR16-TX Combined complementary switching contactor control 16 380 Provided 138x138
KLD-MR16-H Mixed complementary switching contactor control 16 220 Provided 138x138
KLD-MRT16 Combined/Mixed complementary switching thyristor control 16 220 Provided 138x138
KLD-MR16-R Intelligent Capacitor Switching Control 64 220 Provided 138x138

Technical Parameters


  • Operation voltage:AC220V/380V,45-65Hz

    Display:Current I, Voltage U, Power factor cosφ, Active power P, Reactive power Q, Harmonic THD, etc.

    Number of output channels:16 channels

    Interface:RS485, RJ45, Modbus Communication protocol

    Connection:Pluggable terminal

    Housing:Front: resin structure Rear: metal structure

    Operating temperature:-25℃~+70℃

    Storage temperature:-40℃~+85℃

    Ambient humidity:0%~95%, no humidity and condensing

    Protection degree:IP40 for front panel, changed protection degree can be customized

    Case size:144mm(L) x144mm(W)x65mm(D)

    Execution standard:EN61010-1/IEC 61610-1,EN 61326/IEC 61326

Selection table


  • Application:Combined complementary switching contactor control

    Number of controller paths:16

    AC voltage(V):380

    Over-temperature protection:Provided

    Hole size(mm):138x138

  • Application:Combined complementary switching contactor control

    Number of controller paths:16

    AC voltage(V):220

    Over-temperature protection:Provided

    Hole size(mm):138x138

  • Application:Combined/Mixed complementary switching thyristor control

    Number of controller paths:16

    AC voltage(V):220

    Over-temperature protection:Provided

    Hole size(mm):138x138

  • Application:Intelligent Capacitor Switching Control

    Number of controller paths:64

    AC voltage(V):220

    Over-temperature protection:Provided

    Hole size(mm):138x138
