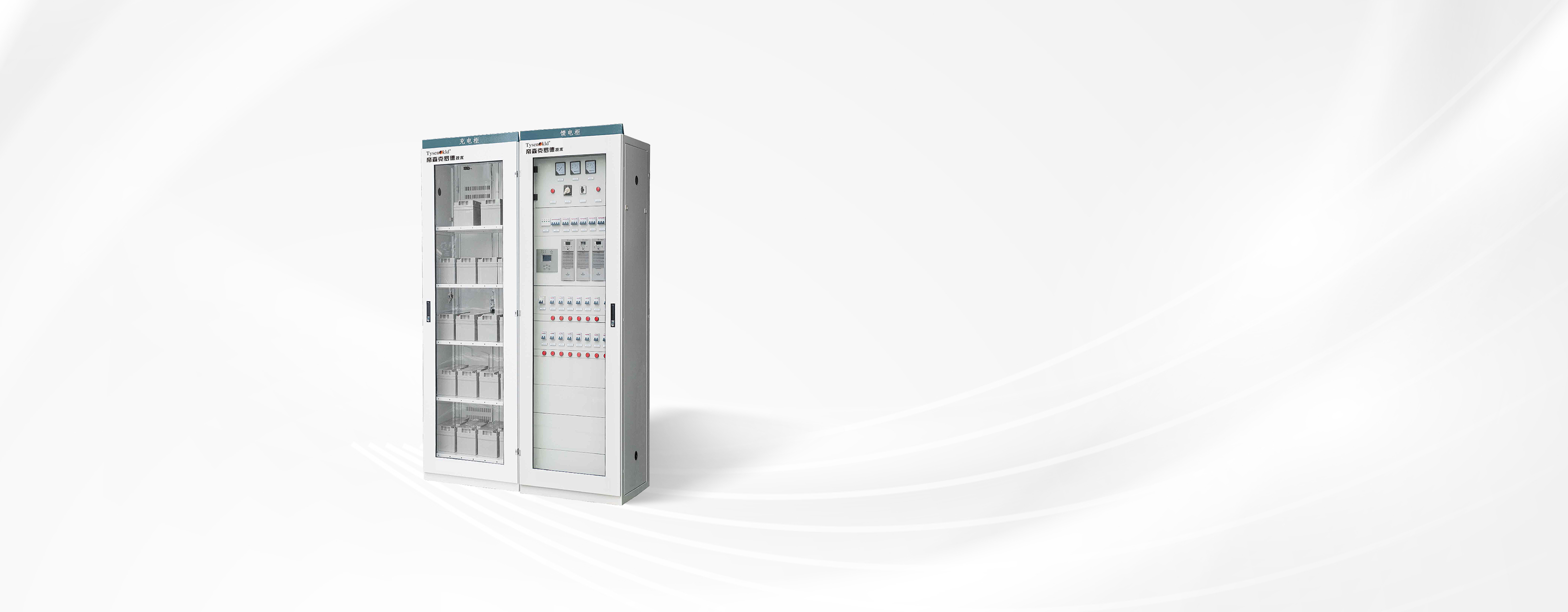

NPM20

Intelligent High-frequency

DC Power Supply System

Intelligent Efficient Safe Comprehensive

A brand new power supply system integrating digital control, protection and management to provide stable operating power for DC circuits.

PRODUCT OVERVIEW

NPM20 series intelligent high-frequency DC power supply system is mainly used in power grid, power generation and other fields. As a DC uninterrupted power supply for all automatic electric power systems, communication systems, remote execution systems, switch opening and closing, relay protection, automatic devices and signaling devices of high-voltage circuit breaker.

PRODUCT CHARACTERITICS

Intelligent human
-machine interface

large-size color touch screen makes human-machine operation more convenient.

Intelligent monitoring system

The system is equipped with RS485/RS232 communication interface and adheres to Modbus-RTU protocol, which can be accessed to the back-end system to realize intelligent monitoring.

Redundant design

High-frequency DC power supply module adopts N+1 redundant design and high-frequency resonant soft-switching technology, reducing the loss and extending the service life.

Long service life

Uses the battery of well-known brand, and the service life is up to 100,000 hours (1500 times).

High stability

he rectifier module utilizes advanced soft-switching conversion technology and built-in CPU technology, with low voltage distortion, high efficiency, high accuracy of voltage and current stabilization and low ripple coefficient.

High reliability

The charging module can be hot-swapped, which greatly reduces the average maintenance time, so that the device is able to monitor the insulation of the system in real time to ensure system and personal safety.

Technical Parameters

Category Name Indicator
220V Series 110V Series
Input parameters Input voltage AC80-285V or AC380V±20%
Frequency 50Hz±10%
Power factor ≧0.92 ≧0.92
Output parameter Float voltage 176~260Vdc 88~130Vdc
Equalizing charge 220~286Vdc 110~143Vdc
Ripple coefficient ≤±0.5%(typical value 0.1%) ≤±0.5%(typical value 0.1%)
Voltage stabilization accuracy ≤±0.5%(typical value 0.1%) ≤±0.5%(typical value 0.1%)
Current stabilization accuracy ≤±0.5%(typical value 0.1%) ≤±0.5%(typical value 0.1%)
Equalizing unbalance ≤±3%(50%-100% rated load) ≤±3%(50%-100% rated load)
Efficiency 95% (single module) 95% (single module)
Protection parameters Input overvoltage switching point 456±5Vac 456±5Vac
Input undervoltage switching point 304±5Vac 304±5Vac
Charging module output undervoltage alarm 196V 99V
Insulation characteristics Output-to-ground insulation 2kVac, current leakage ≤30mA,
1min, no arcing
2kVac, current leakage ≤30mA,
1min, no arcing
Input-to-ground insulation
Input to output ground insulation
Insulation resistance ≥10MΩ ≥10MΩ
Application environment Operating temperature -10℃~+45℃
Storage temperature -40℃~+60℃ (without battery)
Humidity Daily average ≤95%, Monthly average ≤90%
Other characteristics Noise Self-cooling ≤40db
Protection degree ≥IP30
Heat dissipation mode Air-cooling/Self-cooling
Battery capacity 20AH~2000AH
Battery life 100,000 hours
Selection table

NPM20 100AH 2 G D2 Optional functions
Product code Capacity specification Number of cabinet panels Installation method Output voltage Function code
NPM20:
Intelligent
High-frequency
DC Power Supply System
20AH
24AH
40AH
65AH
100AH
1: one panel
2: two panels
3: three panels
No code: None:Floor-standing
G:Wall-mounted
D2: DC220V
D1: DC110V
D4: DC48V
K: Switching detection module
C: Battery inspection module
F:Branch circuit insulation detection module
N:Inverter module

Technical Parameters


NPM20 Intelligent High-frequency DC Power Supply System

  • Input parameters:Input voltage:AC80-285V or AC380V±20%;Frequency:50Hz±10%;Power factor: ≧0.92;

    Output parameter:Float voltage:176~260Vdc;Equalizing charge:220~286Vdc;Ripple coefficient:≤±0.5%(typical value 0.1%);Voltage stabilization accuracy :≤±0.5%(typical value 0.1%);Current stabilization accuracy :≤±0.5%(typical value 0.1%);Equalizing unbalance: ≤±3%(50%-100% rated load);Efficiency:95% (single module);

    Protection parameters:Input overvoltage switching point:456±5Vac;Input undervoltage switching point:304±5Vac;Charging module output undervoltage alarm:196V;

    Insulation characteristics:Output-to-ground insulation/Input-to-ground insulation/Input to output ground insulation:2kVac, current leakage ≤30mA,1min, no arcing;Insulation resistance:≥10MΩ;

    Application environment:Operating temperature:-10℃~+45℃;Storage temperature:-40℃~+60℃ (without battery);Humidity:Daily average ≤95%, Monthly average ≤90%;

    Other characteristics:Noise:Self-cooling ≤40db;Protection degree:≥IP30;Heat dissipation mode:Air-cooling/Self-cooling;Battery capacity :20AH~2000AH;Battery life:100,000 hours;

  • Input parameters:Input voltage:AC80-285V or AC380V±20%;Frequency:50Hz±10%;Power factor: ≧0.92;

    Output parameter:Float voltage:88~130Vdc;Equalizing charge:110~143Vdc;Ripple coefficient:≤±0.5%(typical value 0.1%);Voltage stabilization accuracy :≤±0.5%(typical value 0.1%);Current stabilization accuracy :≤±0.5%(typical value 0.1%);Equalizing unbalance: ≤±3%(50%-100% rated load);Efficiency:95% (single module);

    Protection parameters:Input overvoltage switching point:456±5Vac;Input undervoltage switching point:304±5Vac;Charging module output undervoltage alarm:99V;

    Insulation characteristics:Output-to-ground insulation/Input-to-ground insulation/Input to output ground insulation:2kVac, current leakage ≤30mA,1min, no arcing;Insulation resistance:≥10MΩ;

    Application environment:Operating temperature:-10℃~+45℃;Storage temperature:-40℃~+60℃ (without battery);Humidity:Daily average ≤95%, Monthly average ≤90%;

    Other characteristics:Noise:Self-cooling ≤40db;Protection degree:≥IP30;Heat dissipation mode:Air-cooling/Self-cooling;Battery capacity :20AH~2000AH;Battery life:100,000 hours;

Selection table


  • Product code :NPM20:Intelligent High-frequency DC Power Supply System

    Capacity specification:20AH、24AH、40AH、65AH、100AH

    Number of cabinet panels:1: one panel 、 2: two panels 、 3: three panels

    Installation method:None:Floor-standing、G:Wall-mounted

    Output voltage:D2: DC220V、D1: DC110V、D4: DC48V

    Function code:K: Switching detection module C: Battery inspection module 、F:Branch circuit insulation detection module、N:Inverter module
