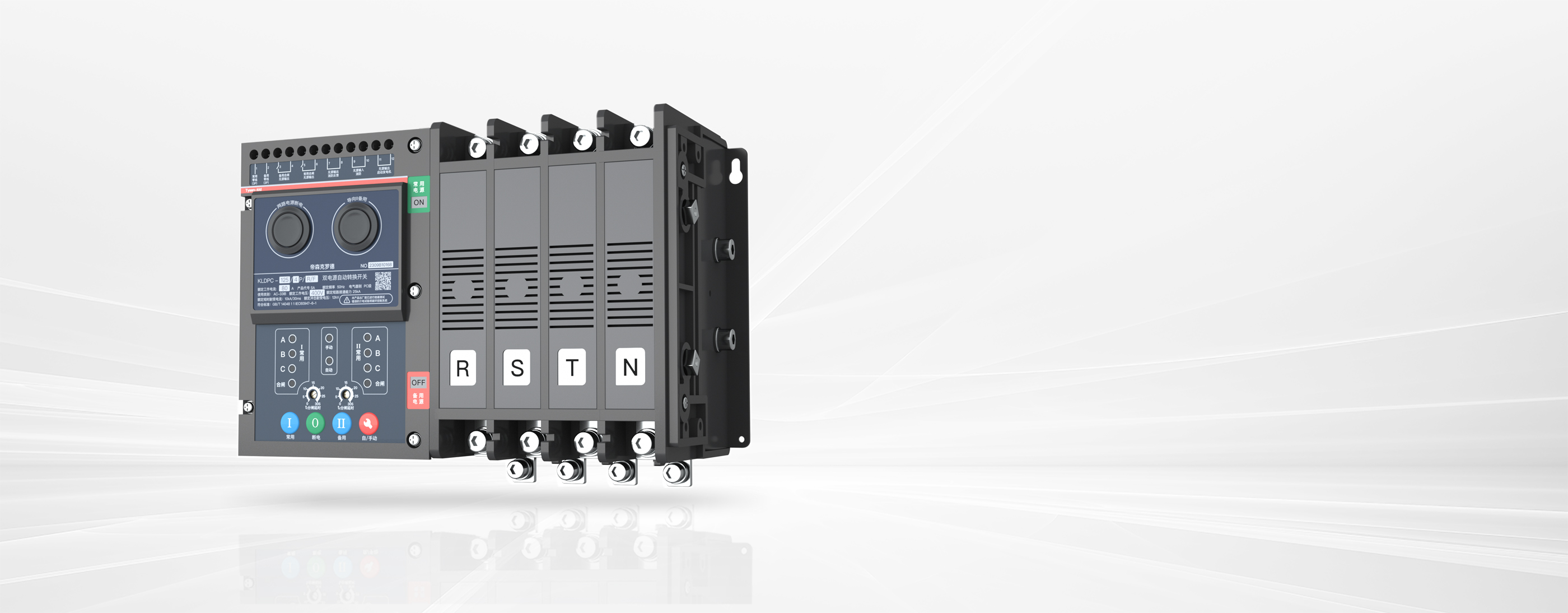

NYKP Series

Dual Power Automatic Transfer Switch

NYKP2 series(16A-3200A)

NYKP1 series(6A-630A)

Intelligent Fast Safe Comprehensive

PRODUCT OVERVIEW

Dual power automatic transfer switch is a power conversion equipment, featuring fast response, strong stability and high reliability; it has the protection functions for short circuit, grounding, phase loss and over-voltage; widely used in power plants, substations, coal mines, ports, factories, airports, and other important places for the protection of circuits and equipment safety, realizing intelligent control and management.

FAST RESPONSE AND SWITCHING

Dual power supplies are driven by motors and solenoids for fast.

ISOLATION FUNCTION MAKES USERS MORE ASSURED

The front end of the product can be set with an isolation switch or with isolation function,providing obvious line disconnection points to protect personal safety during maintenance.

TECHNICAL PARAMETERS

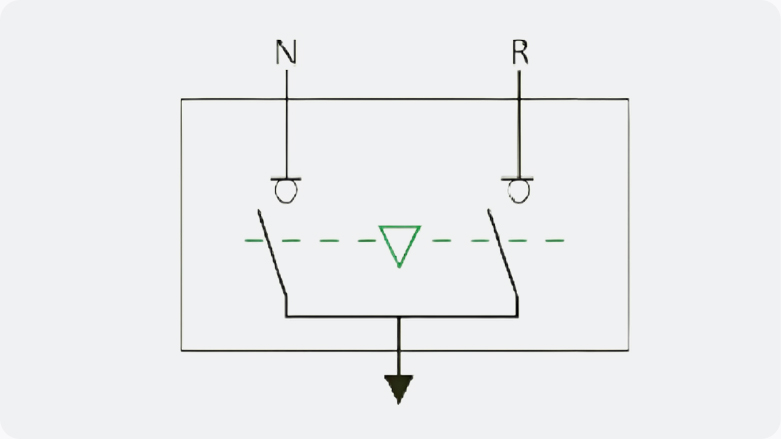

NYKP2 Series

  • Rated operating voltage: 400V
  • Rated operating current: 16-3200A
  • Product category: PC grade
  • Number of poles: 2P, 3P, 4P
  • Switching mode: automatic charge and automatic recovery, automatic charge without automatic recovery
  • Power supply mode: grid - grid, grid - power generation
  • Use category: AC-33iB, AC-33B

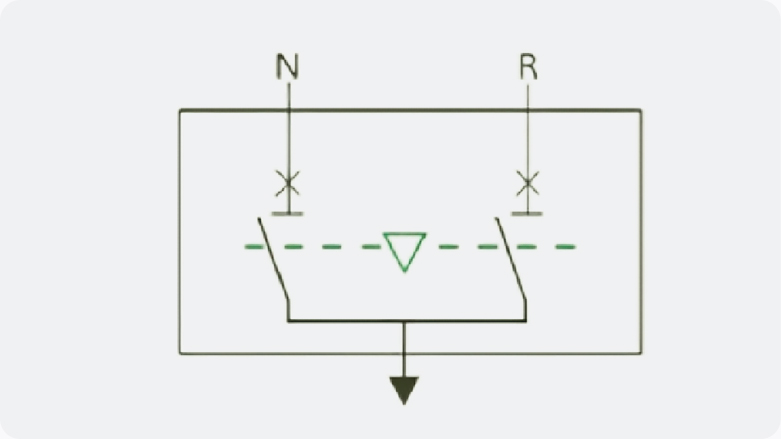

NYKP1 series

  • Rated operating voltage: 400V
  • Rated operating current: 6-630A
  • Product category: CB grade
  • Number of poles: 3P, 4P
  • Switching mode: automatic charge and automatic recovery, automatic charge without automatic recovery
  • Power supply mode: grid - grid, grid - power generation
  • Use category: AC-33iB
Technical Parameters

NYKP2-G Series DUAL Power Supply

Model Rated operating voltage Ue(V) Casing current Inm(A) Rated currentIn(A) Number of poles Rated short-circuit making capacity Icm(kA)Icm(kA) Rated short-time withstand current Icw (kA) Icw(kA) Use category
NYKP2-GA AC400 100 16、20、25、32、40、50、63、80、100 3P、4P 8 5kA/30ms AC-33B
NYKP2-GA 250 125、160、200、225、250 10kA/60ms
NYKP2-GA 630 315、350、400、500、630 12.6kA/60ms
NYKP2-GA 1600 800、1000、1250、1600 32kA/60ms AC-33iB
NYKP2-GA 3200 2000、2500、3200 50kA/1s

NYKP2-LA/L/SA/S Series DUAL Power Supply

Model Rated operating voltage Ue(V) Casing current Inm(A) Rated currentIn(A) Number of poles Rated short-circuit making and Breaking capacity Icm(kA) Operation cycles times/hour Rated short-time withstand current Icw (kA) Icw(kA) Use category
NYKP2-SA、S、LA、L AC230V(2P), AC400V(3P、4P) 125 20、32、40、50、63、80、 100、125 2P、3P、4P 25 120 10kA/30ms AC-33B
NYKP2-SA、S、LA、L 250 125、160、200、250 2P、3P、4P 25 10kA/30ms AC-33B
NYKP2-SA、S、LA、L 630 250、315、400、500、630 2P、3P、4P 30 12.6kA/60ms AC-33B

NYKP2 Series DUAL Power Controller Summary

Controller Model NYKP2 Series
Product model y-701 y-702
Installation method Split type
Display mode Indicator light display LCD display
Rated working system Uninterrupted working system
Automatic charge and automatic recovery
Automatic charge without automatic recovery
Mutual backup
Automatic start generator function
Common power supply detection Four-phase power loss detection, three-phase over-voltage and
Backup power supply detection Four-phase power loss detection, three-phase over-voltage and
Passive fire protection input
Active fire protection input (DC9-36V)(DC9-36V)
Adjustable transfer delay
Real-time voltage display
Common and backup power supply indication
Adjustable overvoltage and undervoltage for common and backup power
Adjustable start and stop time of generator ●(F/F1)
Programmable output port
RS485Electrical energy measurement

NYKP1 Series DUAL Power Supply

Model Rated operating voltage Ue(V) Rated impulse withstand voltage Uimp(kV) Casing current Inm(A) Rated currentIn(A) Number of poles Rated short-circuit breaking capacity Icn (kA) Rated short-circuit making capacity Icm(kA)Icm(kA) Product code Use category
NYKP1 AC400 8 63 6、10、16、20、25、 32、40、50、63 3P、4P 5 120 M:Basic type M1: Fire extinguishing type AC-33iB

NYKP1A Series DUAL Power Supply

Model Rated operating voltage Ue(V) Casing current Inm(A) Rated currentIn(A) Number of poles Operating mode Transfer time Mechanical life(Times) Electrical life (times) Controller
NYKP1A AC400 63 6、10、16、20、25、 32、40、50、63 4P R(Automatic charge and automatic recovery)
S(Automatic charge without automatic recovery)
F(grid-power generation)
≤2s 10000 4500
NYKP1A 125 63、80、100、125 ≤3s+delay time 7000 3000 W2
W3
NYKP1A 250 160、180、200、225、250 5000 2000
NYKP1A 630 315、350、400、500、630 5000 2000

NYKP1 Series Dual Power Controller Summary

Product model NYKP1 Series
Controller Model W2 W3
Installation method Split type
Display mode Digital display LCD display
Rated working system
Automatic charge and automatic recovery
Automatic charge without automatic recovery
Mutual backup
Automatic start generator function
Common power supply detection
Backup power supply detection
Passive fire protection input
Active fire protection input (DC9-36V)(DC9-36V)
Adjustable transfer delay
Real-time voltage display
Common and backup power supply indication
Adjustable overvoltage and undervoltage for common and backup power
Adjustable start and stop time of generator
Programmable output port
RS485Electrical energy measurement
Selection table

NYKP2-G Series DUAL Power Supply

NYKP2 100 GA 4P 100A RF Additional functions
Product code Casing current Product category Pole No. Rated current Operating mode Additional functions
NYKP2:
Dual power automatic transfer switch
100A
250A
630A
1600A
3200A
GA: Electric motor type
GA1: Electric motor type
3P:3 pole
4P:4 pole
16A、20A
25A、32A
40A、50A
63A、80A
100A、125A
160A、200A
225A、250A
315A、350A
400A、500A
630A、800A
1250A
1600A
2000A
2500A
3200A
R:Automatic charge and automatic recovery
S:Automatic charge without automatic recovery
F:Grid generation
RF:Automatic charge and automatic recovery+Grid generation
Y-701
Y-702

NYKP2-LA/L/SA/S Series DUAL Power Supply

NYKP2 125 SA 4P 100A RF Additional functions
Product code Casing current Product category Pole No. Rated current Operating mode Additional functions
NYKP2:
Dual power automatic transfer switch
125A
250A
630A
SA: Integrated three-section type
LA: Integrated two-section type
S:Split three-section type
L:Split two-section type
2P:2 pole
3P:3 pole
4P:4 pole
20A、32A、 40A、
50A、 63A、80A、
100A、125A、 160A、
200A、 250A、315A、
400A、500A、630A
R:Automatic charge and automatic recovery
S:Automatic charge without automatic recovery
F:Grid generation
RF:Automatic charge and automatic recovery+Grid generation
Y-701
Y-702

Note:•  GA series equipped with standard fire protection function
•  GA1 series does not include fire protection function
•  GA series with automatic charge without automatic recovery function should be equipped with Y-701/Y-702 controller
•   GA series with communication function should be equipped with Y-702 controller

NYKP1 Series DUAL Power Supply

NYKP1 63 M 3P 63A RF C type
Product code Casing current Product category Pole No. Rated current Operating mode Tripping type
NYKP1:
Dual power automatic transfer switch
63A Model M:Basic type
M1 type:Fire protection type
3P:3 pole
4P:4 pole
6A、10A、 16A、
20A、 25A、32A、
40A、50A、 63A
R:Automatic charge and automatic recovery
S:Automatic charge without automatic recovery
F:Grid generation
RF:Automatic charge and automatic recovery+Grid generation
C type
D type

Note: KLDCB1 is a CB grade dual power supply switch, the execution unit is a miniature circuit breaker, with C characteristics by default

NYKP1A Series DUAL Power Supply

NYKP1A 125 4P 63A RF Additional functions
Product code Casing current Pole No. Rated current Operating mode Additional functions
NYKP1A:
Dual power automatic transfer switch
63A
125A
250A
630A
4P:4 pole 6A、10A
16A、20A
25A、32A
40A、50A
63A、80A
100A、125A
160A、180A
200A、225A
250A、315A
350A、400A
500A、630A
R:Automatic charge and automatic recovery
S:Automatic charge without automatic recovery
F:Grid generation
RF:Automatic charge and automatic recovery+Grid generation
W2
W3
T:Electrical energy measurement

Note: The execution unit of NYKP1A is a miniature circuit breaker, with C characteristics by default. others are molded case circuit breaker.

Technical Parameters

NYKP2-G Series DUAL Power Supply

  • Rated operating voltage (V):AC400

    Current shell frame Inm (A) :16、20、25、32、40、50、63、80、100

    Number of poles:3P、4P

    Rated short-circuit making capacity Icm(kA)lcm(kA):8

    Rated short-time withstand current Icw (kA) Icw(kA):5kA/30ms

    Use category:AC-33B

  • Rated operating voltage (V):AC400

    Current shell frame Inm (A) :125、160、200、225、250

    Number of poles:3P、4P

    Rated short-circuit making capacity Icm(kA)lcm(kA):8

    Rated short-time withstand current Icw (kA) Icw(kA):10kA/60ms

    Use category:AC-33B

  • Rated operating voltage (V):AC400

    Current shell frame Inm (A) :315、350、400、500、630

    Number of poles:3P、4P

    Rated short-circuit making capacity Icm(kA)lcm(kA):8

    Rated short-time withstand current Icw (kA) Icw(kA):12.6kA/60ms

    Use category:AC-33B

  • Rated operating voltage (V):AC400

    Current shell frame Inm (A) :800、1000、1250、1600

    Number of poles:3P、4P

    Rated short-circuit making capacity Icm(kA)lcm(kA):8

    Rated short-time withstand current Icw (kA) Icw(kA):32kA/60ms

    Use category:AC-33iB

  • Rated operating voltage (V):AC400

    Current shell frame Inm (A) :2000、2500、3200

    Number of poles:3P、4P

    Rated short-circuit making capacity Icm(kA)lcn(kA):8

    Rated short-time withstand current Icw (kA) Icw(kA):50kA/1s

    Use category:AC-33iB

NYKP2-LA/L/SA/S Series DUAL Power Supply

  • Rated operating voltage (V):AC230V(2P),AC400V(3P、4P)

    Current shell frame Inm (A) :20、32、40、50、63、80、100、125

    Number of poles:2P、3P、4P

    Rated short-circuit making and breaking capacityIcm (kA) lcm(kA):25

    Operation cycles times/hour:120

    Rated short-time withstand current Icw (kA) Icw(kA):10kA/30ms

    Use category:AC-33iB

  • Rated operating voltage (V):AC230V(2P),AC400V(3P、4P)

    Current shell frame Inm (A) :125、160、200、250

    Number of poles:2P、3P、4P

    Rated short-circuit making and breaking capacityIcm (kA) lcm(kA):25

    Operation cycles times/hour:120

    Rated short-time withstand current Icw (kA) Icw(kA):10kA/30ms

    Use category:AC-33iB

  • Rated operating voltage (V):AC230V(2P),AC400V(3P、4P)

    Current shell frame Inm (A) :250、315、400、500、630

    Number of poles:2P、3P、4P

    Rated short-circuit making and breaking capacityIcm (kA) lcm(kA):30

    Operation cycles times/hour:120

    Rated short-time withstand current Icw (kA) Icw(kA):12.6kA/60ms

    Use category:AC-33iB

NYKP2 Series Dual Power Controller Summary

  • Installation method:Split type

    Display mode:Indicator light display

    Rated working system:Uninterrupted working system

    Automatic charge and automatic recovery:have

    Automatic charge without automatic recovery:have

    Mutual backup:have

    Automatic start generator function:have

    Common power supply detection: Four-phase power loss detection, three-phase over-voltage and under-voltage detection

    Backup power supply detection: Four-phase power loss detection, three-phase over-voltage and under-voltage detection

    Passive fire protection input:have

    Active fire protection input (DC9-36V):have

    Adjustable transfer delay:have

    Real-time voltage display:not have

    Common and backup power supply indication:have

    Adjustable overvoltage and undervoltage for common and backup power:have

    Adjustable start and stop time of generator:have

    Programmable output port:not have

    RS485 communication function:not have

  • Installation method:Split type

    Display mode:LCD display

    Rated working system:Uninterrupted working system

    Automatic charge and automatic recovery:have

    Automatic charge without automatic recovery:have

    Mutual backup:have

    Automatic start generator function:have

    Common power supply detection: Four-phase power loss detection, three-phase over-voltage and under-voltage detection

    Backup power supply detection: Four-phase power loss detection, three-phase over-voltage and under-voltage detection

    Passive fire protection input:have

    Active fire protection input (DC9-36V) :have

    Adjustable transfer delay:have

    Real-time voltage display:have

    Common and backup power supply indication:have

    Adjustable overvoltage and undervoltage for common and backup power:have

    Adjustable start and stop time of generator:have(F/F1)

    Programmable output port:have

    RS485 communication function:have

NYKP1 Series DUAL Power Supply

  • Rated operating voltage (V):AC400V

    Rated impulse withstand voltage Uimp(kV):8

    Current shell frame Inm (A) :6、10、16、20、25、32、40、50、63

    Number of poles:3P、4P

    Rated ultimate breaking capacity lcm(kA):5

    Rated short-circuit making capacity Icm(kA)lcn(kA):120

    Product code :M: Basic type M1: Fire extinguishing type

    Use category:AC-33iB

NYKP1A Series DUAL Power Supply

  • Rated operating voltage (V):AC400V

    Rated impulse withstand voltage Uimp(kV):8

    Current shell frame Inm (A) :6、10、16、20、25、32、40、50、63

    Number of poles:4P

    Operating mode :R(Automatic charge and automatic recovery)、S(Automatic charge without automatic recovery)、F(grid-power generation)

    Transfer time:≤2s

    Mechanical life (times) :10000

    Electrical life (times) :4500

  • Rated operating voltage (V):AC400V

    Rated impulse withstand voltage Uimp(kV):8

    Current shell frame Inm (A) :63、80、100、125

    Number of poles:4P

    Operating mode :R(Automatic charge and automatic recovery)、S(Automatic charge without automatic recovery)、F(grid-power generation)

    Transfer time:≤3s+delay time

    Mechanical life (times) :7000

    Electrical life (times) :3000

    Controller:W2、W3

  • Rated operating voltage (V):AC400V

    Rated impulse withstand voltage Uimp(kV):8

    Current shell frame Inm (A) :160、180、200、225、250

    Number of poles:4P

    Operating mode :R(Automatic charge and automatic recovery)、S(Automatic charge without automatic recovery)、F(grid-power generation)

    Transfer time:≤3s+delay time

    Mechanical life (times) :5000

    Electrical life (times) :2000

    Controller:W2、W3

  • Rated operating voltage (V):AC400V

    Rated impulse withstand voltage Uimp(kV):8

    Current shell frame Inm (A) :315、350、400、500、630

    Number of poles:4P

    Operating mode :R(Automatic charge and automatic recovery)、S(Automatic charge without automatic recovery)、F(grid-power generation)

    Transfer time:≤3s+delay time

    Mechanical life (times) :5000

    Electrical life (times) :2000

    Controller:W2、W3

NYKP1 Series Dual Power Controller Summary

  • Installation method:Split type

    Display mode:Digital display

    Rated working system:not have

    Automatic charge and automatic recovery:have

    Automatic charge without automatic recovery:have

    Mutual backup:have

    Automatic start generator function:have

    Common power supply detection:have

    Backup power supply detection:have

    Passive fire protection input:have

    Active fire protection input (DC9-36V) :have

    Adjustable transfer delay:have

    Real-time voltage display:have

    Common and backup power supply indication:have

    Adjustable overvoltage and undervoltage for common and backup power:have

    Adjustable start and stop time of generator:have

    Programmable output port:have

    RS485 communication function:have

  • Installation method:Split type

    Display mode:LCD display

    Rated working system:not have

    Automatic charge and automatic recovery:have

    Automatic charge without automatic recovery:have

    Mutual backup:have

    Automatic start generator function:have

    Common power supply detection:have

    Backup power supply detection:have

    Passive fire protection input:have

    Active fire protection input (DC9-36V):have

    Adjustable transfer delay:have

    Real-time voltage display:have

    Common and backup power supply indication:have

    Adjustable overvoltage and undervoltage for common and backup power:have

    Adjustable start and stop time of generator:have

    Programmable output port:have

    RS485 communication function:have

Selection table


NYKP2-G Series DUAL Power Supply

  • Product code :NYKP2: Dual power automatic transfer switch

    Current shell frame :100A、250A、630A、1600A、3200A

    Product category :GA、GA1

    Pole code :3P、4P

    Rated current:16A、20A、25A、32A、40A、50A、63A、80A、100A、125A、160A、200A、225A、250A、315A、350A、400A、500A、630A、800A、1250A、1600A、2000A、2500A、3200A

    Operating mode :R:Automatic charge and automatic recovery、S:Automatic charge without automatic recovery、F:Grid generation、RF:Automatic charge and automatic recovery+Grid generation

    Additional features:Y-701、Y-702

NYKP2-LA/L/SA/S Series DUAL Power Supply

  • Product code :NYKP2: Dual power automatic transfer switch

    Current shell frame :125A、250A、630A

    Product category:SA:Integrated three-section type、LA: Integrated two-section type 、S: Split three-section type、L:Split two-section type

    Pole code :2P、3P、4P

    Rated current: 20A、32A、40A、50A、63A、80A、100A、125A、160A、200A、250A、315A、400A、500A、630A

    Operating mode :R:Automatic charge and automatic recovery、S:Automatic charge without automatic recovery、F:Grid generation、RF:Automatic charge and automatic recovery+Grid generation

    Additional features:Y-701、Y-702

Note: GA series equipped with standard fire protection function
GA1 series does not include fire protection function
GA series with automatic charge without automatic recovery function should be equipped with Y-701/Y-702 controller
GA series with communication function should be equipped with Y-702 controller

NYKP1 Series DUAL Power Supply

  • Product code :NYKP1: Dual power automatic transfer switch

    Current shell frame :63A

    Product category:Type M: Basic type、Type M1: Fire protection type

    Pole code :3P、4P

    Rated current:6A、10A、16A、20A、32A、40A、50A、63A

    Operating mode :R:Automatic charge and automatic recovery、F:Grid generation、RF:Automatic charge and automatic recovery+Grid generation

    Tripping type:Type C 、Type D

Note: KLDCB1 is a CB grade dual power supply switch, the execution unit is a miniature circuit breaker, with C characteristics by default

NYKP1A Series DUAL Power Supply

  • Product code :NYKP1A: Dual power automatic transfer switch

    Current shell frame :63A、125A、250A、630A

    Pole code :4P

    Rated current:6A、10A、16A、20A、32A、40A、50A、63A、80A、100A、125A、160A、180A、200A、225A、250A、315A、350A、400A、500A、630A

    Operating mode :R:Automatic charge and automatic recovery、S:Automatic charge without automatic recovery、F:Grid generation、RF:Automatic charge and automatic recovery+Grid generation

    Additional features:W2、W3、T: Communication function

Note: The execution unit of NYKP1A is a miniature circuit breaker, with C characteristics by default. others are molded case circuit breaker.
