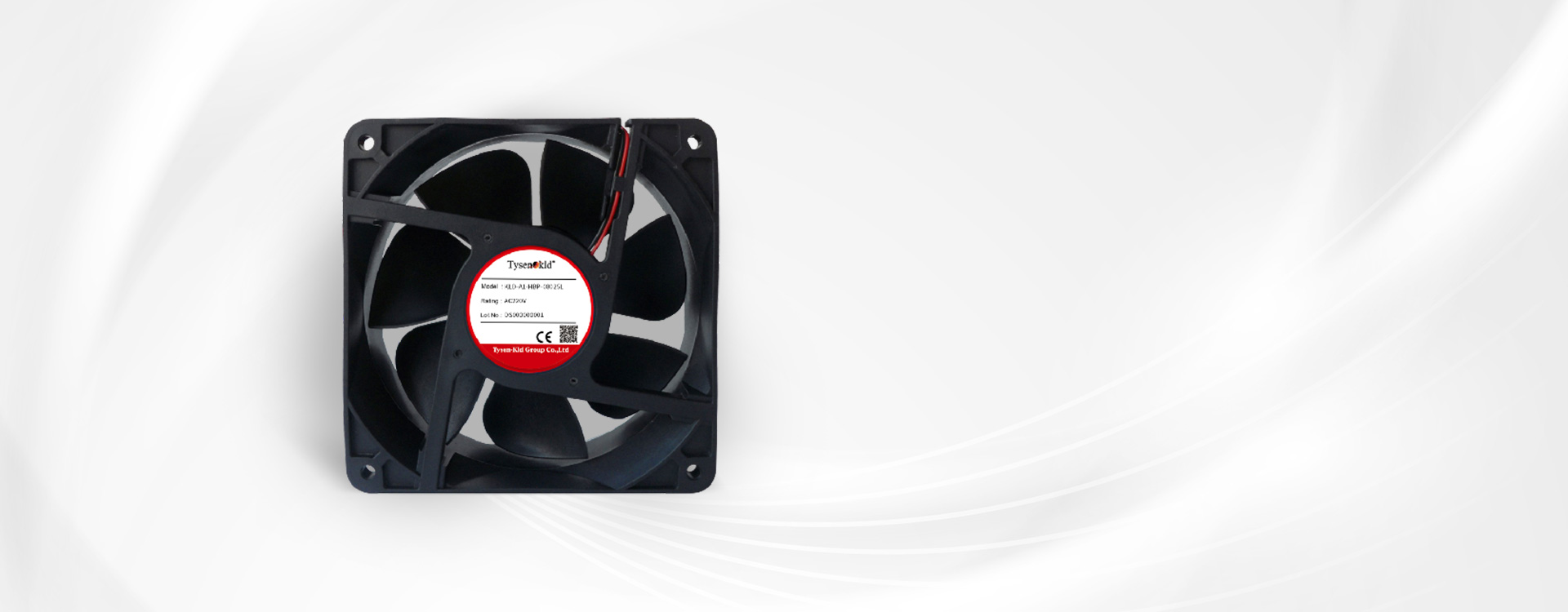

KLD-AC Series

AC Heat Dissipation Fan

It has excellent heat dissipation performance through optimized blade design and innovative structure, and provides customers with high-efficient and low-noise heat dissipation products.

PRODUCT OVERVIEW

KLD-AC series fans are high-quality heat dissipation equippment for industrial cabinets and automatic control equipment. There are two bearing modes available: ball bearing and sleeve bearing. It is charaterized by high precision, low noise, high manufacturing quality and long service life, which can run for a long period of time.

High-quality enameled copper wire, high-standard stator and rotor of the industry and unique structural design to minimize its own loss, with more than 60,000 hours of life expectancy in 40 ℃ environment. Aluminum alloy sprayed surface highlights the high-end quality and two-plane balancing is stable and reliable. It’s made of corrosion- and oxidation-resistant high-strength material and auxiliary materials with a variety of filters and supporting protection mesh. It is designed with curved grilles and various fixation methods. Energy-saving airduct effectively enhances the ventilation effect.

COMPLETE IN SPECIFICATIONS AND
VARIOUS AUXILIARY MATERIALS

There are a wide range of options of AC fan types, voltage specifications, outlet methods, fan blade materials, sizes, bearing types, additional functions, etc., which can meet the heat dissipation needs of different operating conditions. It also can be customized according to the needs of the customers, with a wide range of auxiliary materials and complete in specifications.

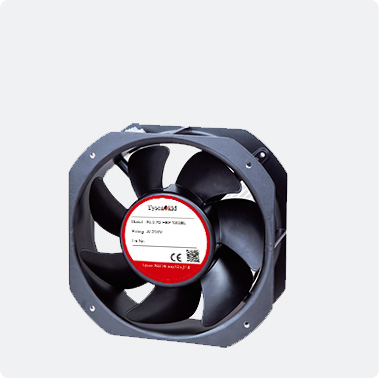

Axial flow fan

Centrifugal fan

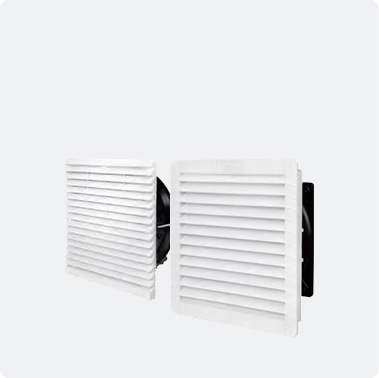

Filter

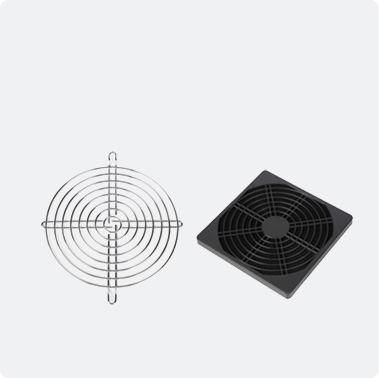

Protection mesh

EXCELLENT PERFORMANCE

It adopts aerodynamic design by exquisite craftsmanship and selects high-quality materials for precise manufacturing, with comprehensive high-quality control of the product; uses high-precision bearing, which has lower noise, less resistance, higher speed and superior heat dissipation performance; the overall energy consumption is reduced to be greener and more environmentally friendly.

Technical Parameters

General parameters
Frame Aluminum alloy
Blade Metal or plastic
Voltage range ±1.1 Un
Starting voltage 85% of rated voltage, normally start after 20 seconds
Insulation resistance >50MΩ(DC500V megohmmeter)
Withstand voltage level Applies AC1500V60s, leakage current<1mA
Motor structure Shaded pole induction motor or capacitive induction motor
Motor protection Impedance protection or thermal protection
Service life L10 40℃;≥60,000h(ball bearing);≥50,000h(sleeve bearing)
Storage temperature -30-70℃(plastic blade);-50-95℃(metal blade)

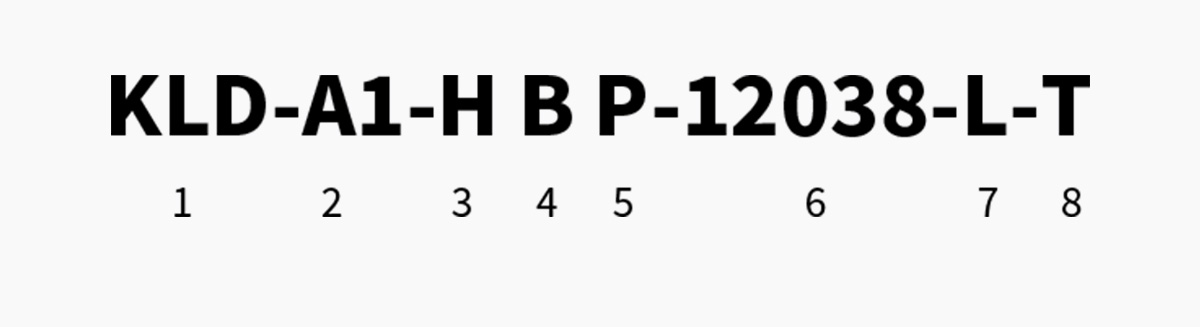

Selection table

1. Company code
2. Fan type and voltage level: A-AC fan (1/2/3-110V/220V/380V)
3. Air volume: U-Ultra-high speed; H-High speed; M-Middle speed; L-Low speed
4. Bearing type: B-Ball bearing; S-Sleeve bearing
5. Fan blade material: M-Metal; P-Plastic
6. Fan frame size or blade size
7. Outlet mode: L-Towing type; T-Plug-in type; W-Terminal block
8. Additional functions: A-Passive alarm; T-temperature protection; C-Overcurrent protection
Technical Parameters


  • Frame:Aluminum alloy

    Blade:Metal or plastic

    Voltage range:±1.1 Un

    Starting voltage:85% of rated voltage, normally start after 20 seconds

    Insulation resistance:>50MΩ(DC500V megohmmeter)

    Withstand voltage level:Applies AC1500V60s, leakage current<1mA

    Motor structure:Shaded pole induction motor or capacitive induction motor

    Motor protection:Impedance protection or thermal protection

    Service life:L10 40℃;≥60,000h(ball bearing);≥50,000h(sleeve bearing)

    Storage temperature:-30-70℃(plastic blade);-50-95℃(metal blade)

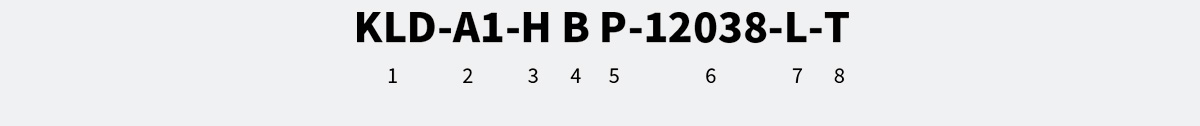

Selection table


1. Company code
2. Fan type and voltage level: A-AC fan (1/2/3-110V/220V/380V)
3. Air volume: U-Ultra-high speed; H-High speed; M-Middle speed; L-Low speed
4. Bearing type: B-Ball bearing; S-Sleeve bearing
5. Fan blade material: M-Metal; P-Plastic
6. Fan frame size or blade size
7. Outlet mode: L-Towing type; T-Plug-in type; W-Terminal block
8. Additional functions: A-Passive alarm; T-temperature protection; C-Overcurrent protection
